TESCAN AMBER X

Optimized plasma FIB-SEM platform for high-quality deprocessing of the most modern semiconductor devices with proprietary chemistries

  • Low-kV high-resolution imaging with enhanced topographic contrast of target layers

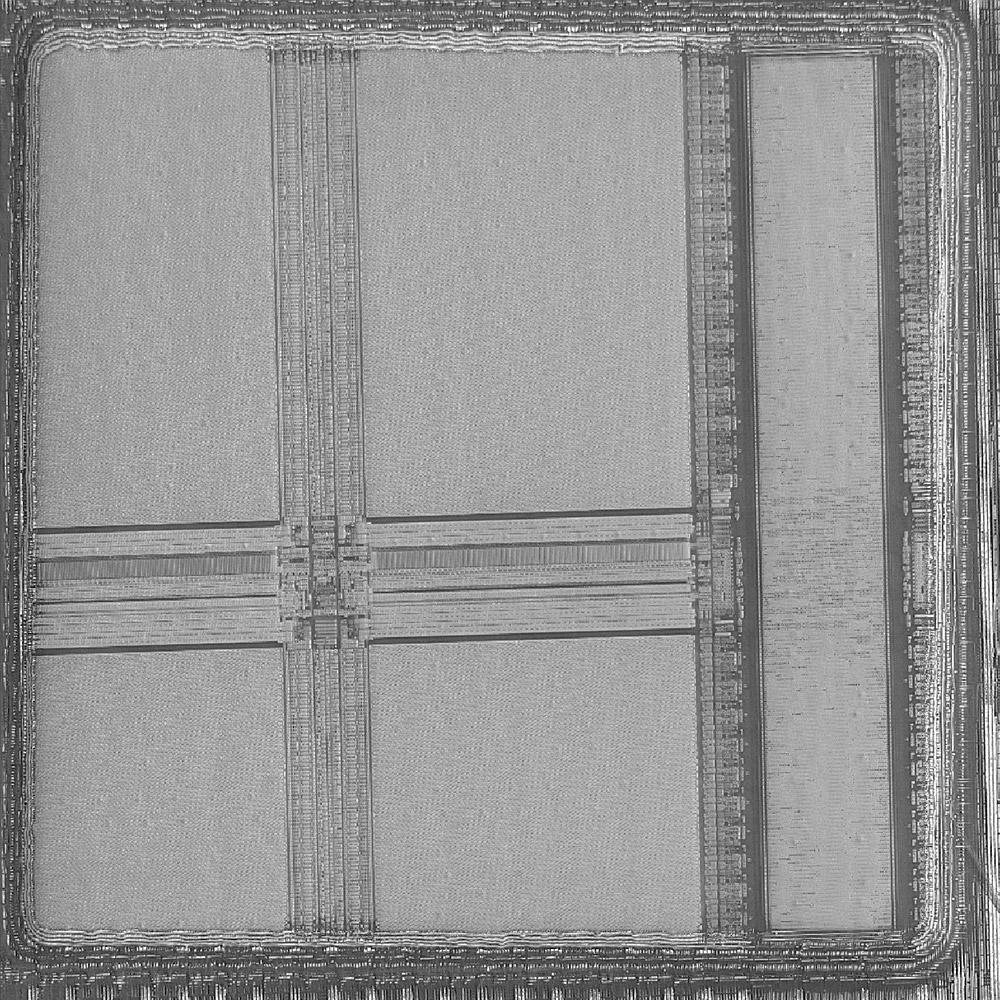

  • Imaging of edges of delayered or cleaved chips using field-free high-resolution technology
  • Dedicated and proprietary gas chemistries for sub-14 nm nodes deprocessing

  • End-pointing software module for semiautomated deprocessing enables stopping the process at a desired layer

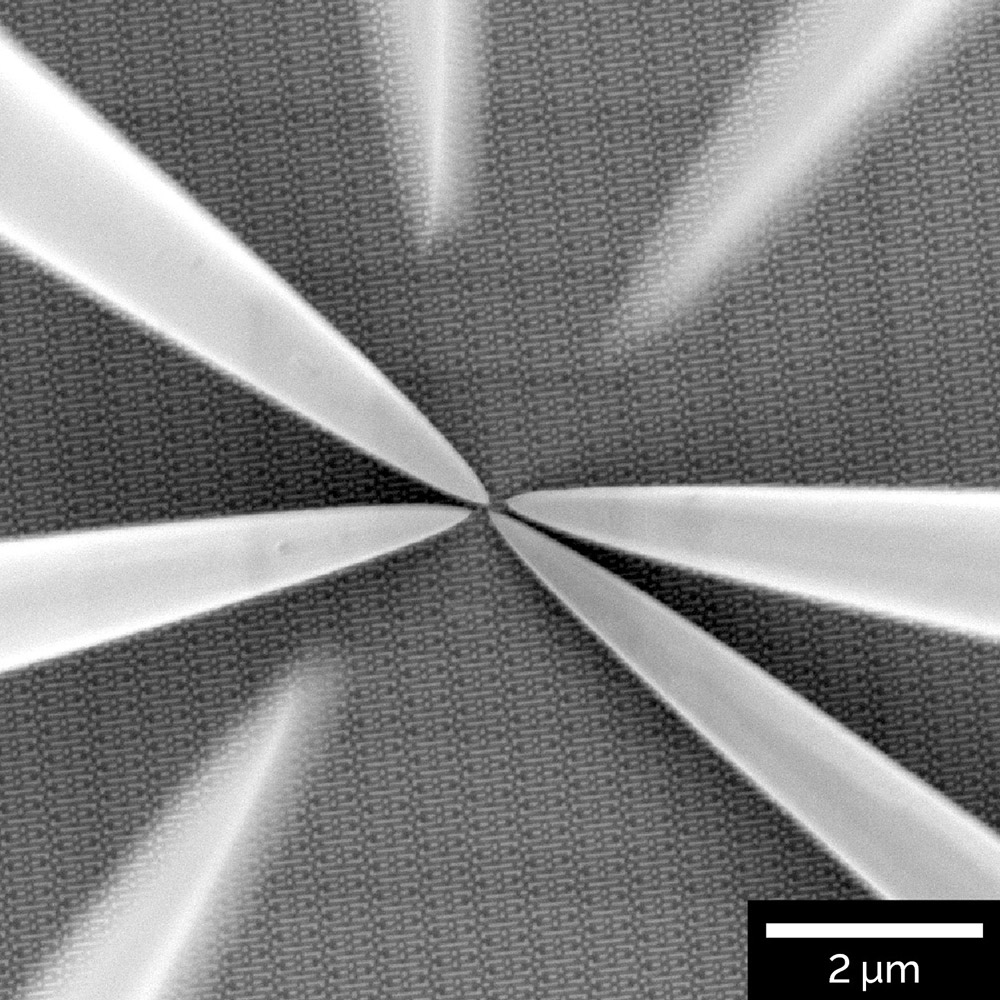

  • Electrical characterization of the most sensitive semiconductor devices using in-situ nanoprobing
  • Easy-to-use, fully customizable, applicationoriented and modular user interface

  • Delayering sub-20 nm nodes for in-situ nanoprobing with TESCAN AMBER X

    Application Note

    pdf 1 MB Download
  • TESCAN AMBER X

    Product Flyer

    pdf 649 KB Download
Get in touch

Do you wish to discuss TESCAN AMBER X? Contact our Team directly!
