Raise the bar to

100% realtime truth.







TESCAN micro-CT solutions

3D and 4D X-Ray Scans.

Faster. Better. Realtime.



Customize your experience:

New call-to-action

New call-to-action

UnitomHR_Hero_blackback_award_crop-1

Raise the bar to

100% realtime truth.







TESCAN Dynamic micro-CT solutions

Dynamic 3D X-Ray Scans, in situ.

Faster. Better. Realtime.

Tescan_Micro_CT_Hero
Tescan_Micro_CT_Hero

Raise the bar to

100% realtime truth.







TESCAN Dynamic micro-CT solutions

Dynamic 3D X-Ray Scans, in situ.

Faster. Better. Realtime.

Download paper for free today

Resolution, Speed, Image Quality and System Versatility in micro-CT.

Despite an ever-expanding range of additional capabilities for micro-CT systems, the key application for micro-CT remains the production of 3D datasets of a sample’s structure or composition. Whether these datasets are used to quantify material characteristics such as porosity, used as input for numerical models, or are simply being used to gain a better understanding of the interior of a sample, image quality remains paramount to obtaining reliable and reproducible results.

New call-to-action

015-micro-CT-Inspiration-Paper-tn
Tescan_fan

UNPARALLELED PERFORMANCE

Speed Up. Maximized system
utilization and throughput.

Maximizing throughput and reducing the cost per sample. Utilizing fast frame rate detectors and high flux x-ray sources, all TESCAN micro-CT systems provide high temporal resolution.

   Faster Scans

faster

Up to

30 x

faster

Acquisition times on a TESCAN micro-CT are often just seconds or minutes – not hours or days – allowing rapid screening of a large number of samples, making sure only the right samples are sent through for further investigation.

Screen Shot 2022-01-20 at 6.09.02 PM
Screen Shot 2022-01-20 at 6.09.09 PM

UNPARALLELED PERFORMANCE

Characterize Your Materials.
Nondestructive.
With Superior Image Quality.

TESCAN micro-CT offers superior image quality in the shortest scan times. High contrast and excellent signal-to-noise ratio combined with high resolution solve all your micro-CT needs.

High-Res



HighRes



Spatial Resolution
down to

600 nm

on UniTOM HR

Critical scanner components – source, rotation stage and detector – , enhanced with in-house developed software tools, are finetuned to deliver the best possible imaging results.

Asset 2@4x



Screen_academia2scan3

UNPARALLELED PERFORMANCE

Maxed out Dimensions

Scanned samples can be
dimensioned up to
1 meter tall and
60 cm wide.

Probe Dimension



sm-m-lg



Up to


XS-XL

TESCAN UniTOM XL covers a wide range of sample sizes and types. Combined with Volume Of Interest Scanning (VOIS) capabilities, micro-CT provides a multi-scale imaging CT solution. With a maximum sample size of 100 by 60 cm (XL).

Download Unitom XL Brochure  download



UNPARALLELED VERSATILITY

Supersized Analytics.
True Data.

Get the full picture, layer by layer.
Your nondestructive, immediate truth
via intuitive tools for 3D and
4D data processing.




















Nondestructive-text

Acquila enables the full use of up to 11 degrees of freedom in TESCAN micro-CT systems, allowing complex acquisition paths and dynamic CT acquisition. PantheraTM handles reconstruction and visualization of large 3D volumes and 4D data series. Special dynamic CT tools allow analysis and visualization of hundreds of datasets at a glance. All TESCAN micro-CT data is compatible with third party software packages.

Download Application Note                 download
Analysis of Sheep Femur



UNPARALLELED VERSATILITY

Supersized Analytics.
True Data.

Get the full picture, layer by layer. Your nondestructive, immediate truth via intuitive tools for 3D and 4D data processing.













Nondestructive-text

Acquila enables the full use of up to 11 degrees of freedom in TESCAN micro-CT systems, allowing complex acquisition paths and dynamic CT acquisition. PantheraTM handles reconstruction and visualization of large 3D volumes and 4D data series. Special dynamic CT tools allow analysis and visualization of hundreds of datasets at a glance. All TESCAN micro-CT data is compatible with third party software packages.

Download Application Note                 download
Analysis of Sheep Femur



UNPARALLELED DYNAMICS

True 4D imaging with
TESCAN dynamic micro-CT.

Bring synchrotron-like capabilities to the lab: With high temporal resolution, continuous and uninterrupted scanning and specialized 4D software tools.

UNPARALLELED DYNAMICS

True 4D imaging with
TESCAN dynamic mico-CT.

Bring synchrotron-like capabilities to the lab: With high temporal resolution, continuous and uninterrupted scanning and specialized 4D software tools.

4D In-Situ Scan


Asset 6

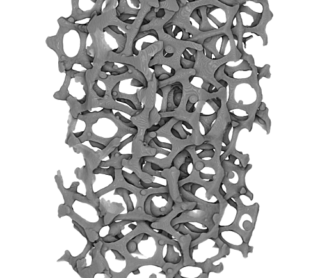

TESCAN Dynamic micro-CT technology enables you to identify events in your sample with the exact time of occurrence, offering real-time, complex in-situ capabilities, recording and visualizing a multitude of physical processes — compression, torsion, tension, flow, heating, cooling, growth of forms, dissolution of liquids and many other dynamic events.

See how dynamic micro-CT can be combined with numerical modeling to fully understand material behavior.

Watch Germinating Seeds
Screen Shot 2022-01-20 at 6.12.16 PM






Application Spectrum

High Resolution


HighRes-1

600 nm

spatial resolution



Using state-of-the art x-ray sources, precision stages and high-quality detectors, high resolution – down to 600 nm on UniTOM HR – is guaranteed on all TESCAN micro-CT systems.

Faster Scan


faster-1

< 5 sec.

temporal resolution



Short scan times enable high throughput, enhance system availability and reduce the cost per sample. TESCAN micro-CT offers best-in-class scan times, often limiting scan time to minutes or less. Of course, high image quality is maintained.

Modularity


Asset 2

Up to 3

detector slots



Upgrade your TESCAN micro-CT system with additional detectors. Offering higher resolution, better contrast or different imaging modalities – such as spectral micro-CT imaging. Modularity extends the lifetime of your investment

4D In-Situ Scan


Asset 6

Dynamic ready

optimized for in-situ



Unique tools for the acquisition, reconstruction and processing of 4D datasets, combined with ample connectivity possibilities for communication and interaction with complex in-situ devices.

Probe Dimensions


sm-m-lg-1


Samples up to 1 meter tall and 60 cm diameter can be scanned in the TESCAN UniTOM XL, without the need of any sample preparation. Using TESCAN VOIs, the sample is automatically repositioned to zoom in to any location.

Nondestructive


Asset 3


Micro-CT is non-destructive, enabling multi-scale studies of the same sample, performing time-resolved experiments, and allowing the same samples to be investigated further using other imaging or analytical techniques.

Software Suite


Asset 4


Powerful, in-house developed software – PantheraTM and AcquilaTM – control TESCAN micro-CT systems and make the acquired data accessible and comprehensible. All data is compatible with third party software packages.

Best in performance


Asset 5


TESCAN micro-CT solutions provide a seamless integration of hard-and software to deliver fastest scan speeds, ultimate versatility and the best image quality available. Need proof? Our top-class application team would be delighted to deliver a demo!

CUSTOMER VOICES

»Never experience this speed with other systems«

Testimonial info section

Use Case Description, Reference Projects details and Customers Benefits description: Bis explacea cusae aut fugia consendae doluptis as doluptae siti coris nem ea doluptatios quisque ent qui reres debitaquis



»Dynamic micro-CT enables insights we never expected this way.«

Prof. Martine Wevers, KU Leuven

“Using dynamic micro-CT we can study processes in real-time, in 4 dimensions. It gives us unique insights in the behavior of materials, as they are exposed to different environmental conditions. Dynamic micro-CT helps us to change the world.”



Meet Prof. Martine Wevers and Dr. Jeroen Soete of KU Leuven. They share how Dynamic mico-CT is indispensable for materials engineering and more.

MODELS & FEATURES LIST

FitBudget



Resolution


Accelerating voltage


Max sample size (H/W)


Scanning envelope (H/W)


Temporal resolution


Source power


Detector






Weight


System dimensions (LxWxH)

UniTOMHR

TESCAN UniTom HR

600nm


160 kV


70/50 cm


40/30 cm


< 5 seconds


50 W


High speed, med FOV (1868 x 1488 px)

High speed, large FOV (3024 x 1868 px)

Low attenuation (2892x 2256 px)


2950 kg


2.06 m x 1.04 m x 2.42 m



Screen Shot 2022-01-20 at 7.11.29 PM



UnitomXL

TESCAN UniTom XL

3 µm


180/230 kV


110/60 cm


200/60 cm


< 3 seconds


300 W




High speed, large FOV




7500 kg


3.5 m x 1.5 m x 2.1 m



Screen Shot 2022-01-20 at 7.11.38 PM



Ready to discuss TESCAN micro-CT?

Please get in touch today.

Our global team will be available to answer questions about the TESCAN line of micro-CT solutions.
